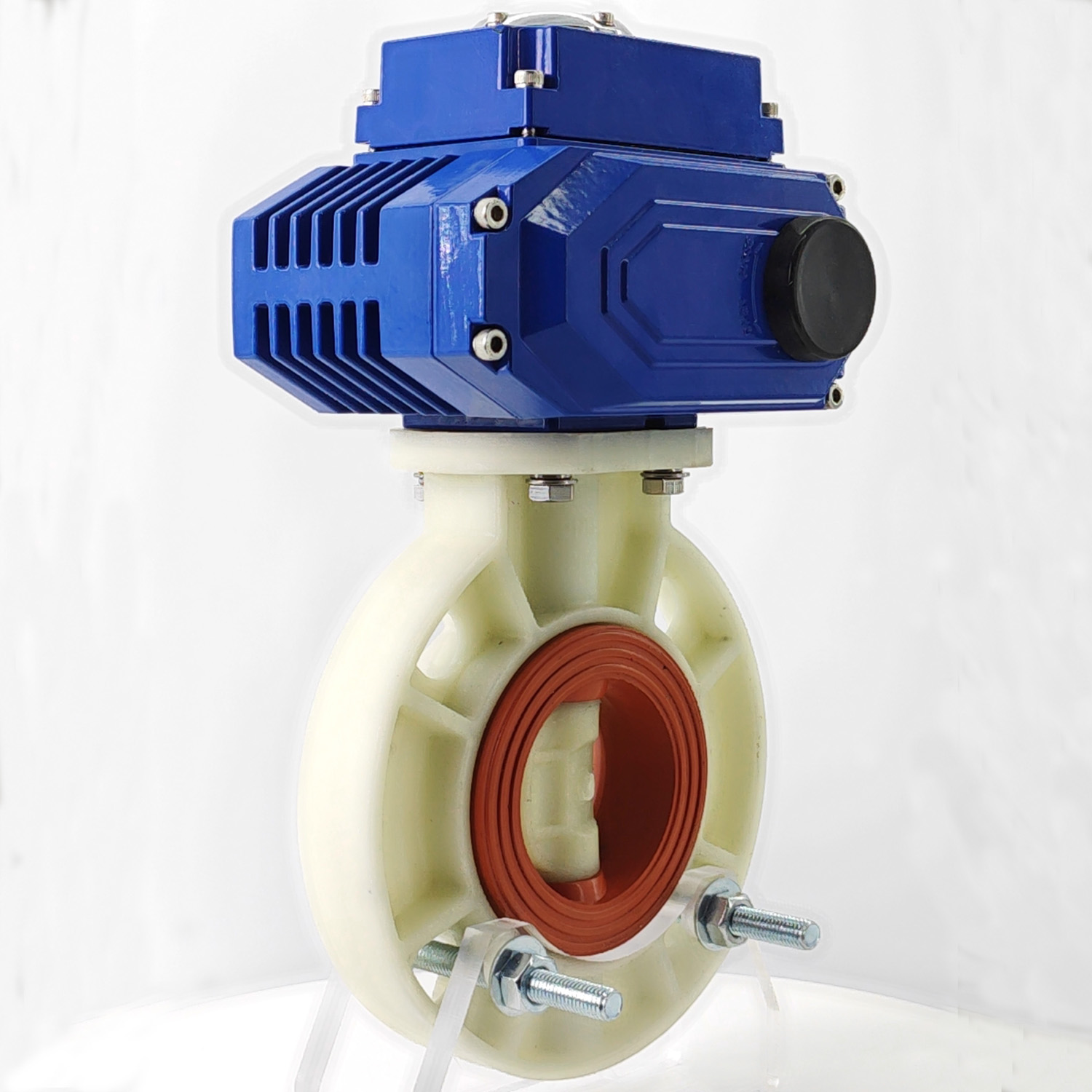

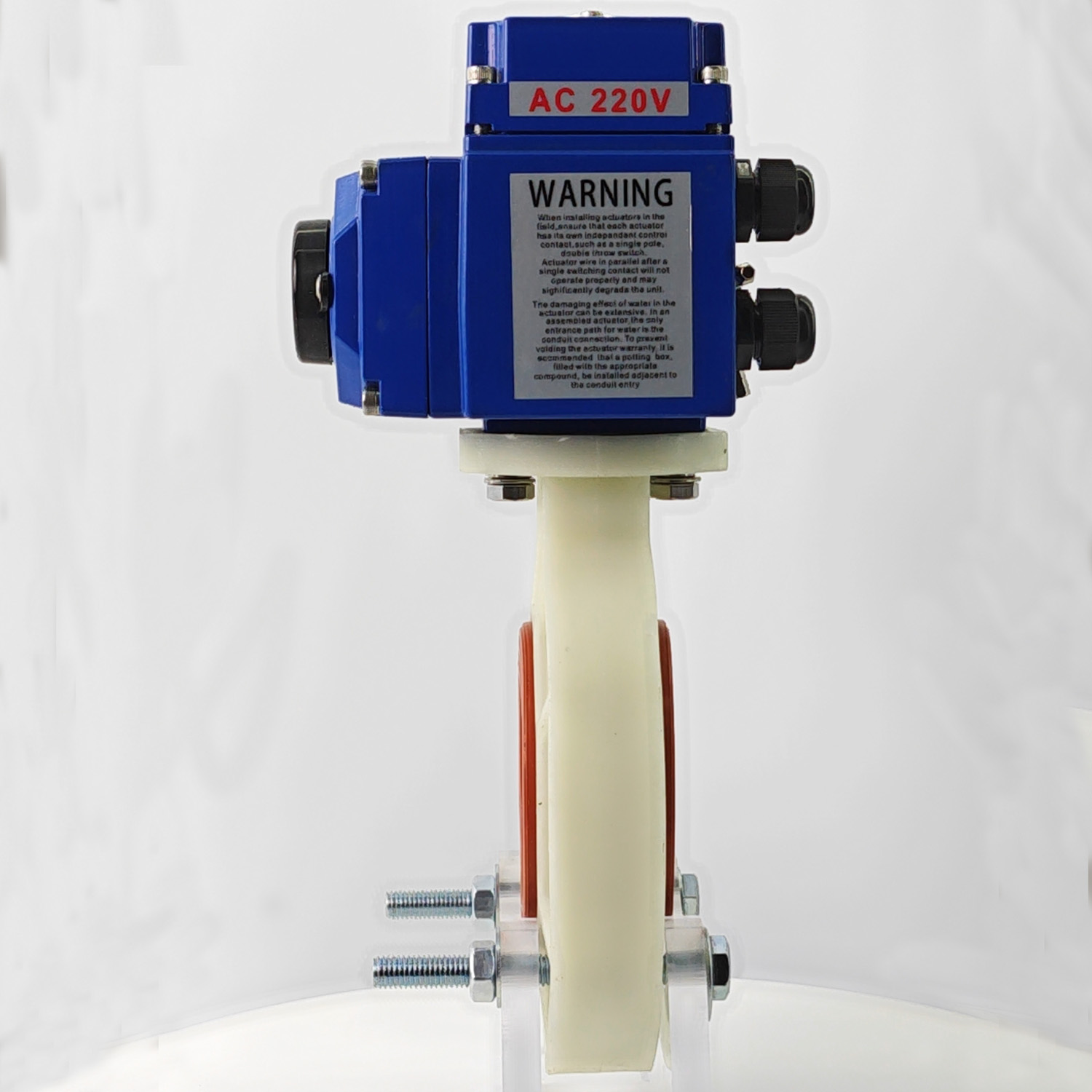

ABS Material Valve Electric butterfly Valve
- Valve body is made of acrylonitrile butadiene styrene (ABS) engineering plastic
- paired with EPDM/FKM/PTFE sealing rings and a stainless steel valve stem
- For low-temperature environments, corrosive fluids, high-purity fluids, and lightweight piping systems
The electric ABS butterfly valve is manufactured using an injection molding process. The valve body is made of acrylonitrile butadiene styrene (ABS) engineering plastic, paired with EPDM/FKM/PTFE sealing rings and a stainless steel valve stem. It is suitable for low-temperature environments, corrosive fluids, high-purity fluids, and lightweight piping systems.
Product Features
- Exceptional low-temperature resistance
- Lightweight design.
- Hygienic design to prevent biological contamination.
- High corrosion resistance.Structure and Composition
| DN | 50~600mm |
| Connection Type | Clamp-on connection |
| Valve Body Material | ABS（-40℃~+70℃）UPVC(-10℃~+55℃)、CPVC(-10℃-+95℃)、RPP(-14℃~+100℃)、PVDF(-40℃~+140℃) |
| Valve Core Material | ABS（-40℃~+70℃）UPVC(-10℃~+70℃)、CPVC(-10℃~+95℃)、RPP(-14℃~+100℃)、PVDF(-40℃~+140℃) |
| Sealing Material | FKM、EPDM、NBR |
| Actuation Type | Explosion-proof electric actuator/Standard (non-explosion-proof) electric actuator |
Technical Specifications
| Parameter Name | Parameter Value |
| Diameter (DN) | DN50 to DN400 (Custom sizes available upon request) |
| Nominal Pressure (PN) | PN6 to PN16 (Up to Class 300 with special design) |
| Temperature Range | -40℃ to +70℃ (FEP lining) |
| Applicable Media | Strong acids, strong alkalis, organic solvents, high-purity liquids, high-temperature gases |
| Connection Type | Flange connection (ANSI, DIN, GB standards), Clamp-on connection |
| Leakage Class | ANSI/FCI 70-2 Class VI (Zero leakage) |
| Actuator Type | ON/OFF (switch type), Modulating (proportional control), with optional explosion-proof certification (Ex d IIC T6) |
Application
- Corrosive Media: Hydrochloric acid, sulfuric acid, organic solvents (e.g., acetone, ethanol).
- High-Purity Media: Purified water, water for injection (compliant with USP<645>), sterile gas.
- Particulate Media: Wastewater containing suspended solids (particle size ≤3mm).
Application Fields:
- Biopharmaceutical: CIP/SIP (Clean-in-Place/Sterilize-in-Place) cleaning pipelines, fermentation tank material transfer.
- Food & Beverage: Dairy filling lines, beverage mixing systems.
Water Treatment: Acid/alkali wastewater treatment, reverse osmosis pre-treatment units.
Pre-treatment:
Clean the flange surface with isopropyl alcohol to remove mold release agent residue (residue level ≤0.1 µg/cm²).
Welding Prohibition Zone:
No electric welding operations are allowed within a 1m radius of the valve body to prevent thermal deformation of the ABS material.
Package
Plywood case or paper carton
Our Service
After-Sales Warranty
- Warranty Period: 12 months (excluding damage caused by human factors or improper use).
- Conditions: Coverage applies only to non-human-induced damage under normal operating conditions.
