Pneumatic Valve UPVC Material valve Plate
- Designed specifically for corrosive media
- Fluoroplastics’ high-temperature tolerance, -20°C to +80°C
- Suitable for automation control in strong acids, strong alkalis, high-purity fluids

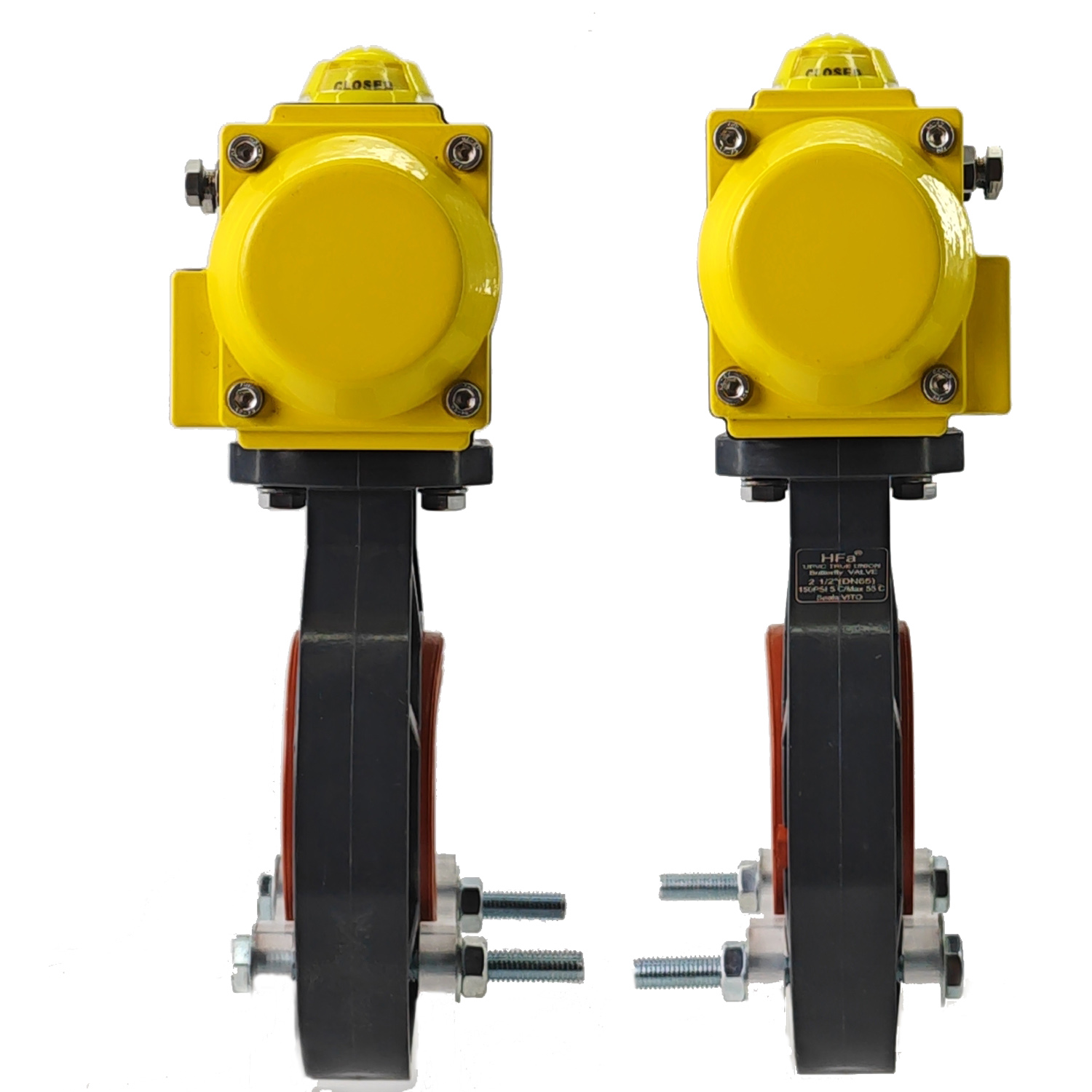

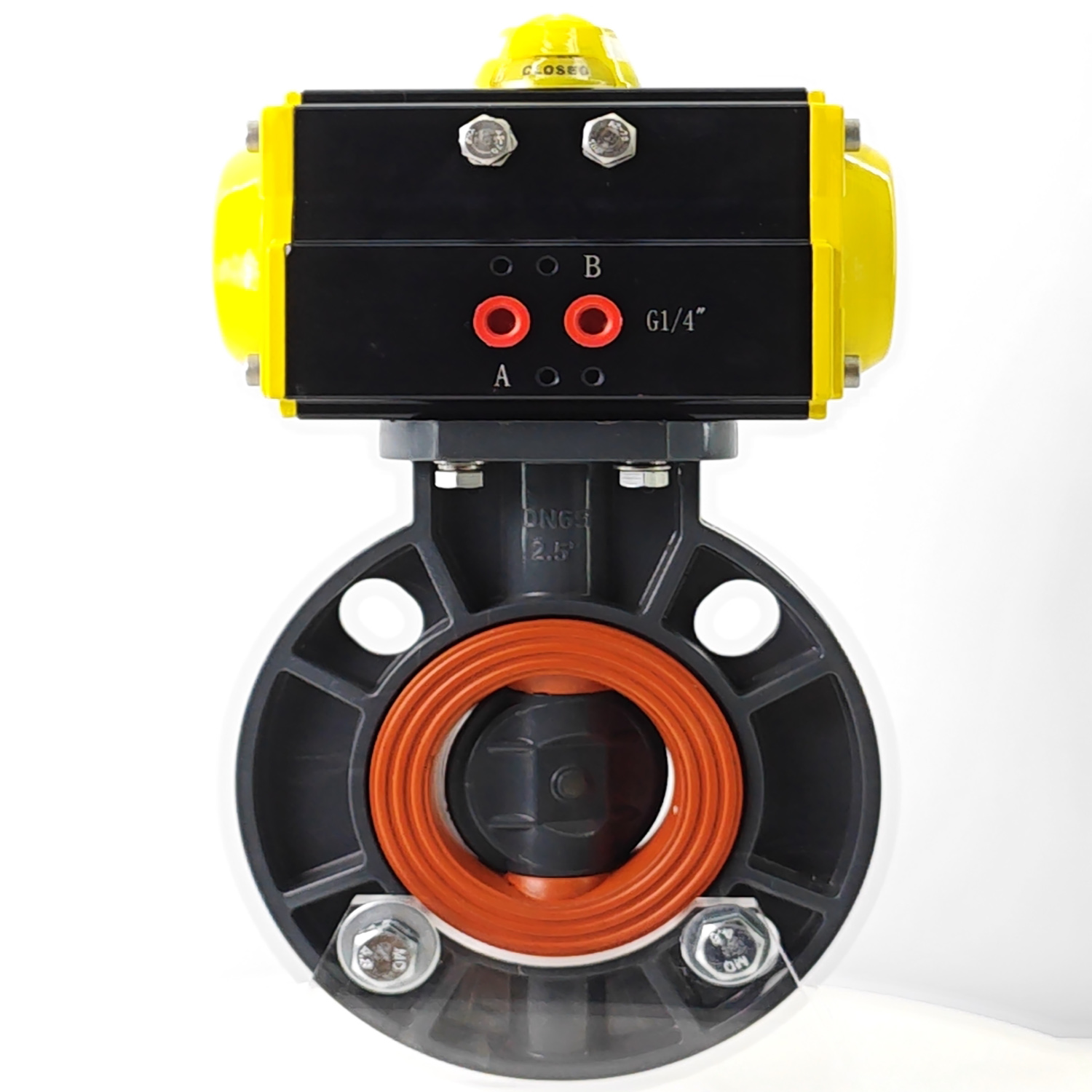

The Pneumatic UPVC Butterfly Valve is a centerline-type butterfly valve driven by a pneumatic actuator, designed specifically for corrosive media. Its core components (e.g., disc, sealing rings) can be lined with fluoroplastics (e.g., FKM, EPDM, NBR), combining UPVC’s corrosion resistance with fluoroplastics’ high-temperature tolerance. Suitable for automation control in strong acids, strong alkalis, high-purity fluids, and certain high-temperature applications, it is widely used in chemical, water treatment, food and pharmaceutical industries.
Media Types
- Corrosive Media: Strong acids (sulfuric acid, hydrochloric acid, nitric acid), strong alkalis, organic solvents.
- High-Purity Liquids: Compliant with FDA/GMP standards (e.g., pharmaceutical, food-grade media).
- Temperature Range:
- UPVC valve body: -20°C to +80°C
- Fluororubber sealing parts: ≤120°C
Structure and Components
| DN | 50~400mm |
| Connection Type | Wafer Connection |
| Valve Body Material | ABS（-40℃~+70℃）UPVC(-10℃~+55℃)、CPVC(-10℃-+95℃)、RPP(-14℃~+100℃)、PVDF(-40℃~+140℃) |
| Disc Material | ABS（-40℃~+70℃）UPVC(-10℃~+55℃)、CPVC(-10℃~+95℃)、RPP(-14℃~+100℃)、PVDF(-40℃~+140℃) |
| Sealing Material | FKM、EPDM、NBR |
| Actuation Type | Pneumatic Actuator Selection and Matching |
Technical Parameters
| Parameter Name | Parameter Value Description |
| Nominal Diameter (DN) | DN50 ~ DN400 (Custom sizes available upon request) |
| Nominal Pressure (PN) | PN6 ~ PN16 (Up to Class 300 with special design) |
| Applicable Media | Strong acids, strong alkalis, organic solvents, high-purity liquids, high-temperature gases, etc. |
| Connection Type | Flange (ANSI, DIN, GB standards), Wafer connection |
| Leakage Class | ANSI/FCI 70-2 Class VI (Zero leakage) |
| Actuation Mode | Double-acting, Single-acting (spring return) |
| Control Type | On/off type, Regulating type |
| Accessory Options | Solenoid valve, positioner, limit switch, air treatment unit (filter, regulator, lubricator), manual override |
Application
Application Fields
- Chemical Industry: Corrosive media transportation systems (e.g., acid/alkali solutions, chemical reagents).
- Environmental Engineering: Acid/alkaline wastewater treatment, seawater desalination pipelines.
- Food & Pharma: Sterile piping, potable water systems.
- Electroplating/Metallurgy: Electrolyte control, corrosive gas regulation.
Package
Plywood case or Paper carton
Our Service
- Warranty Period: 12 months (excluding damage caused by human factors or improper use).
- Technical Support: Free installation guidance provided.
Spare Parts Supply: Long-term replacement services for wear parts (e.g., sealing rings).
