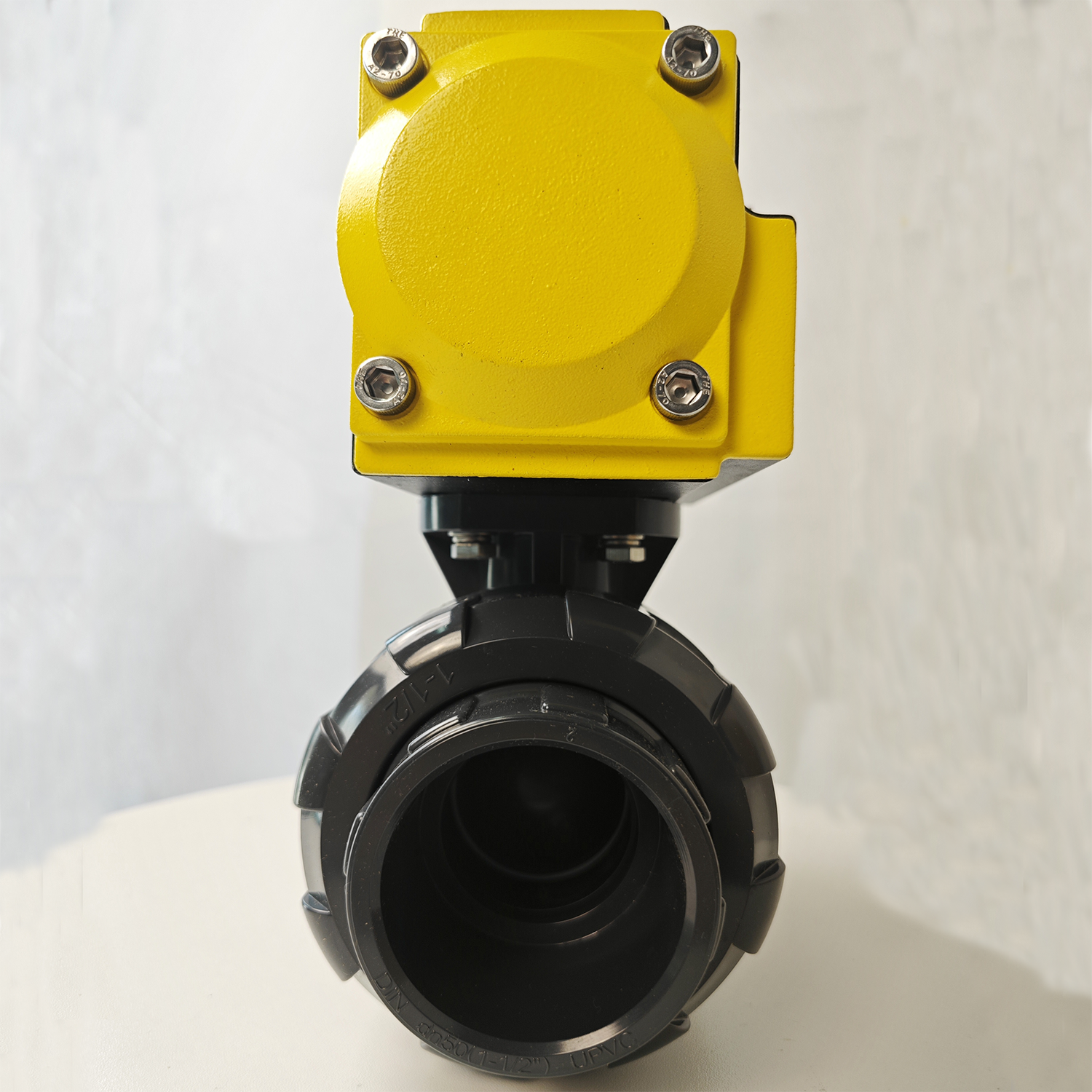

UPVC Plastic Pneumatic Ball Valve
- UPVC Plastic Electric Ball Valve
- Size (LxWxH, mm): 350 ×110 ×160mm
- Valve Body: UPVC
- Valve Plate: UPVC
- Valve Shaft: UPVC
- Valve Seal: EPDM Rubber
- Power: 2p/220v/50Hz
- Torque: 150N.m
Electric butterfly valves are suitable for the HVAC and refrigeration industries, as well as for industrial applications, general service areas and water treatment.
| S.N | Name | Material |
| 1 | Valve Body | Ductile Iron（QT450-10） |
| 2 | Valve Plate | 304SS |
| 3 | Valve Shaft | Carbon Steel with Nickel-Phosphorus Alloy Plating |
| 4 | Valve Seal | EPDM Rubber |
QT-Type Non-contact switch electric Actuator 400V，50HZ
| Name | Specification | Remark |
| Power | 2P /220V /50HZ | |
| Power | 0.04KW | |
| Current | 0.65A | |
| Torque | 150N.m | |
| Housing material | Aluminum alloy with epoxy resin coating | |
| Control | Non-contact dry contact signal (open/close/stop), 4-20mA valve position feedback | |
| Torque | Overload torque protection | |
| Overheat | Thermal Protection | |
| Operation Model | Manual and Electric operation |
Application
It is widely used in industrial process automatic control systems for food, environmental protection, light industry, petroleum, chemical, water treatment, municipal engineering, papermaking, electric power, water treatment and other industries. Electric butterfly valves are suitable for the HVAC and refrigeration industries, as well as for industrial applications, general service areas and water treatment
The advantages of our UPVC Plastic Electric Valves:
- Automatic control the system or pipeline open and closed.
- Stable working performance
- Under high temperature less than 65 degree
- High Pressure less than 16Bar
- Working PH range : 1–11
- Cost cheap, easy replacement
Package
1 unit in one Paper carton with gross weight 4kgs, carton dimension: 360 ×130 ×180mm.
Our Service
1. We are the leading manufacturer of electric valve, we can produce the products with top quality and good reason price
2. We Provides a full range of services ,technical support, quality gurantee.
3. Valves sample for your project requirement customized.
